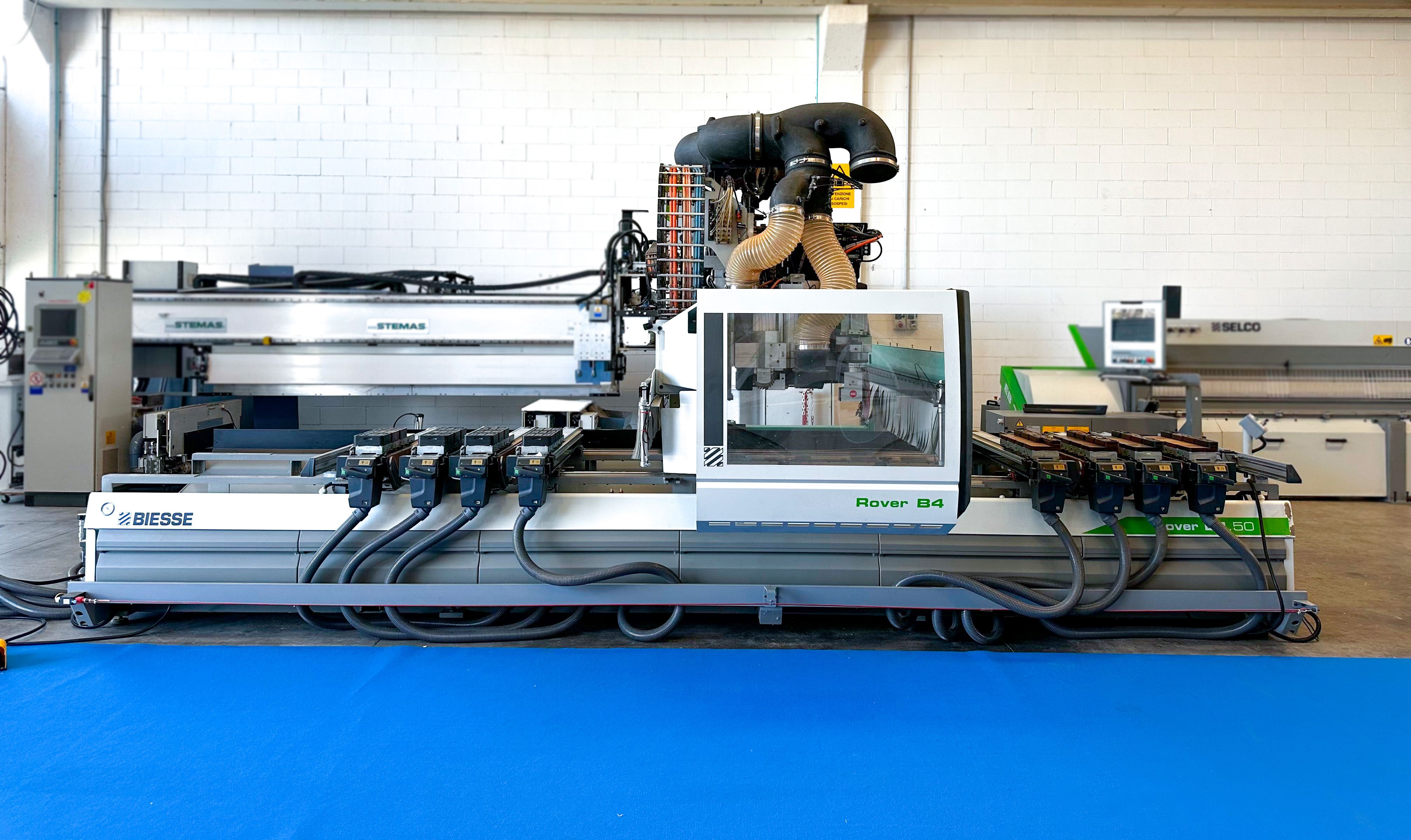

Used CNC Woking center 4 axes Biesse Rover B 4.50

DESCRIZIONE

Working area 4600 mm x 1342 mm;
Workable panel thickness 180 mm;

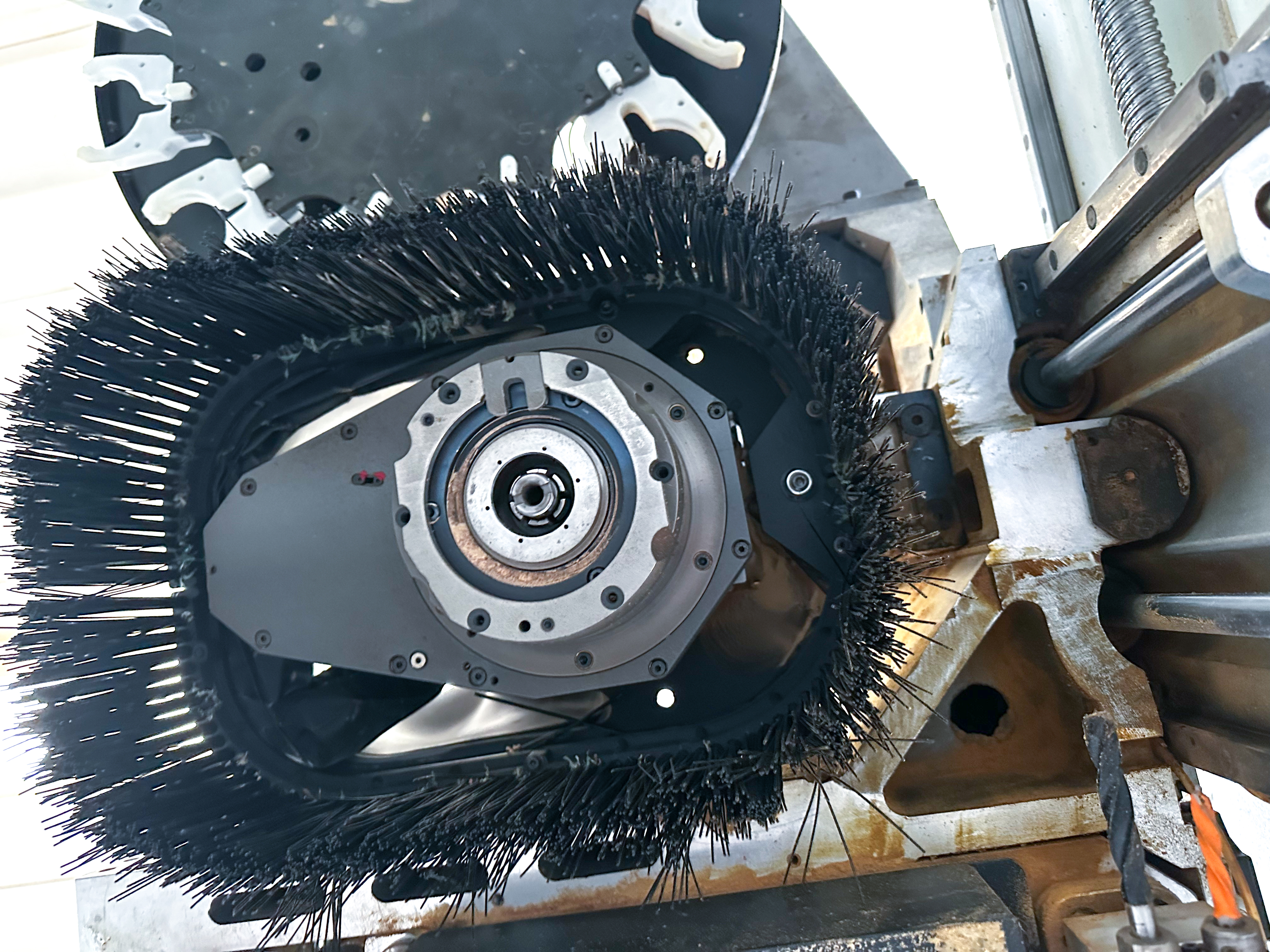

N° 1 Hsk F 63 4-axis electrospindle;

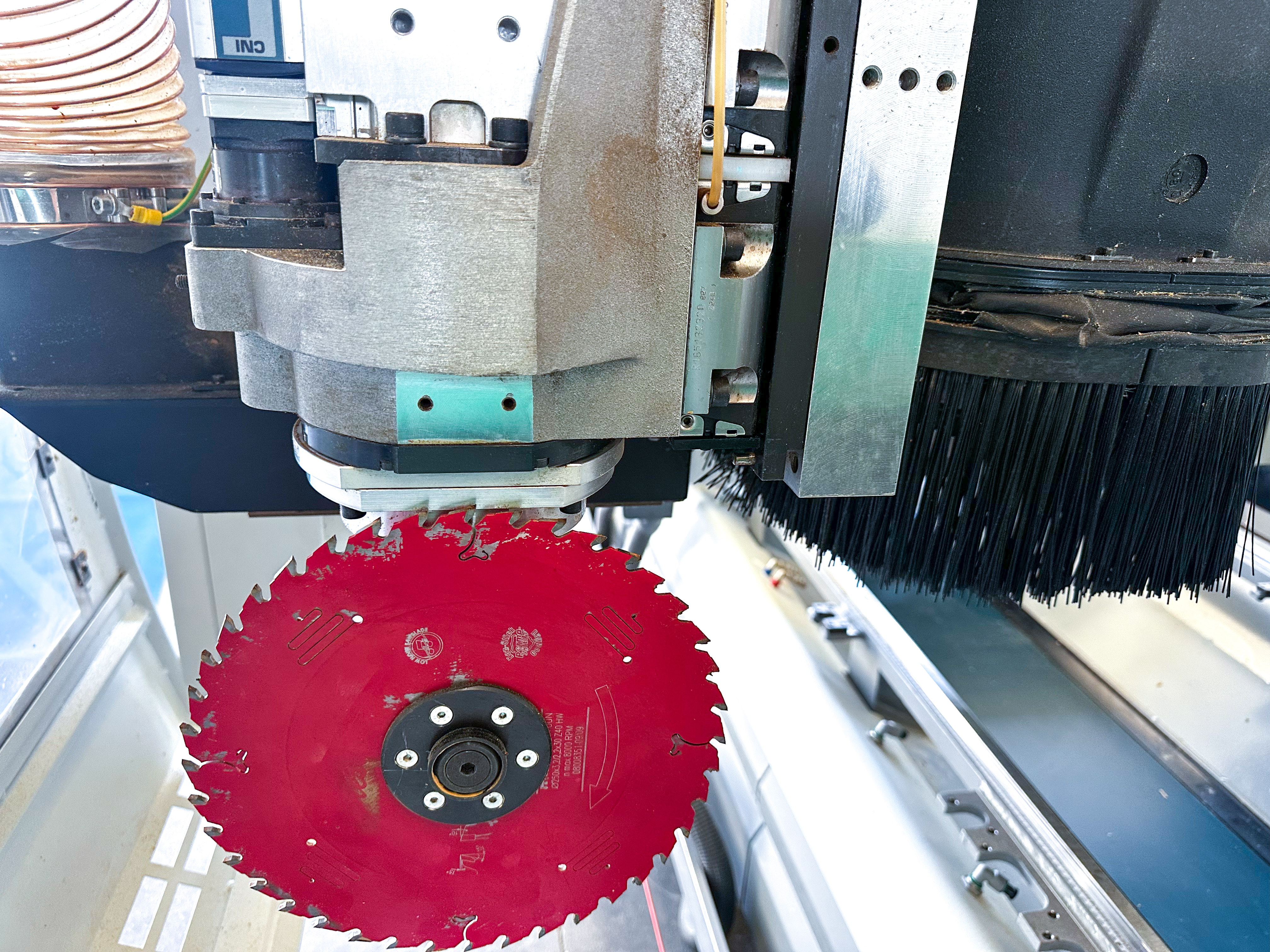

Orientable blade unit;

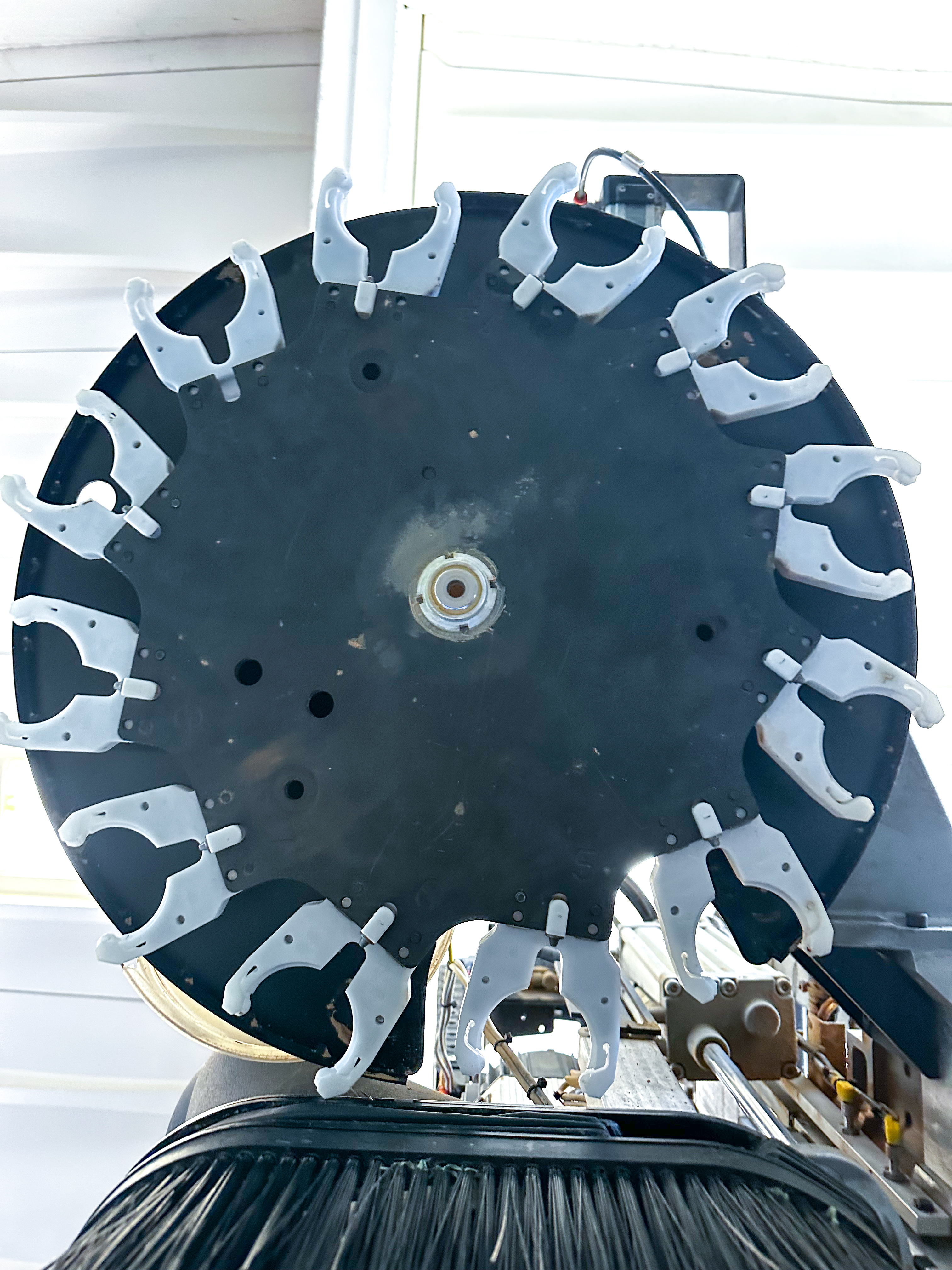

12 positions revolver automatic tools changing system;

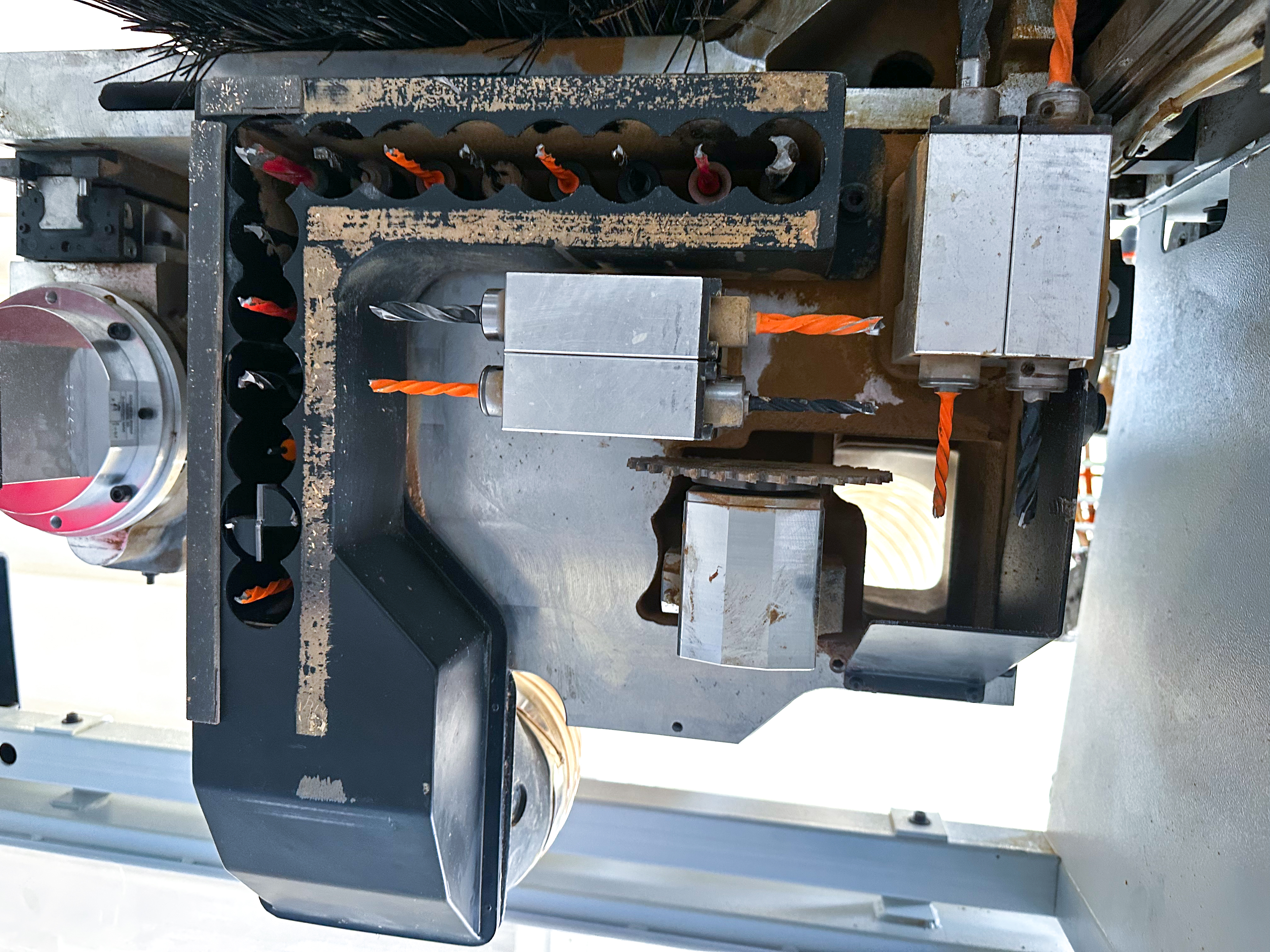

N° 14 independent vertical spindles;
N° 4 horizontal boring spindles in X;
N° 4 horizontal boring spindles in Y;
Automatic EPS pods and rails system (8 rails, 24 pods);
Integrated blade in X diameter 125 mm;
250 m3/h vacuum pump;

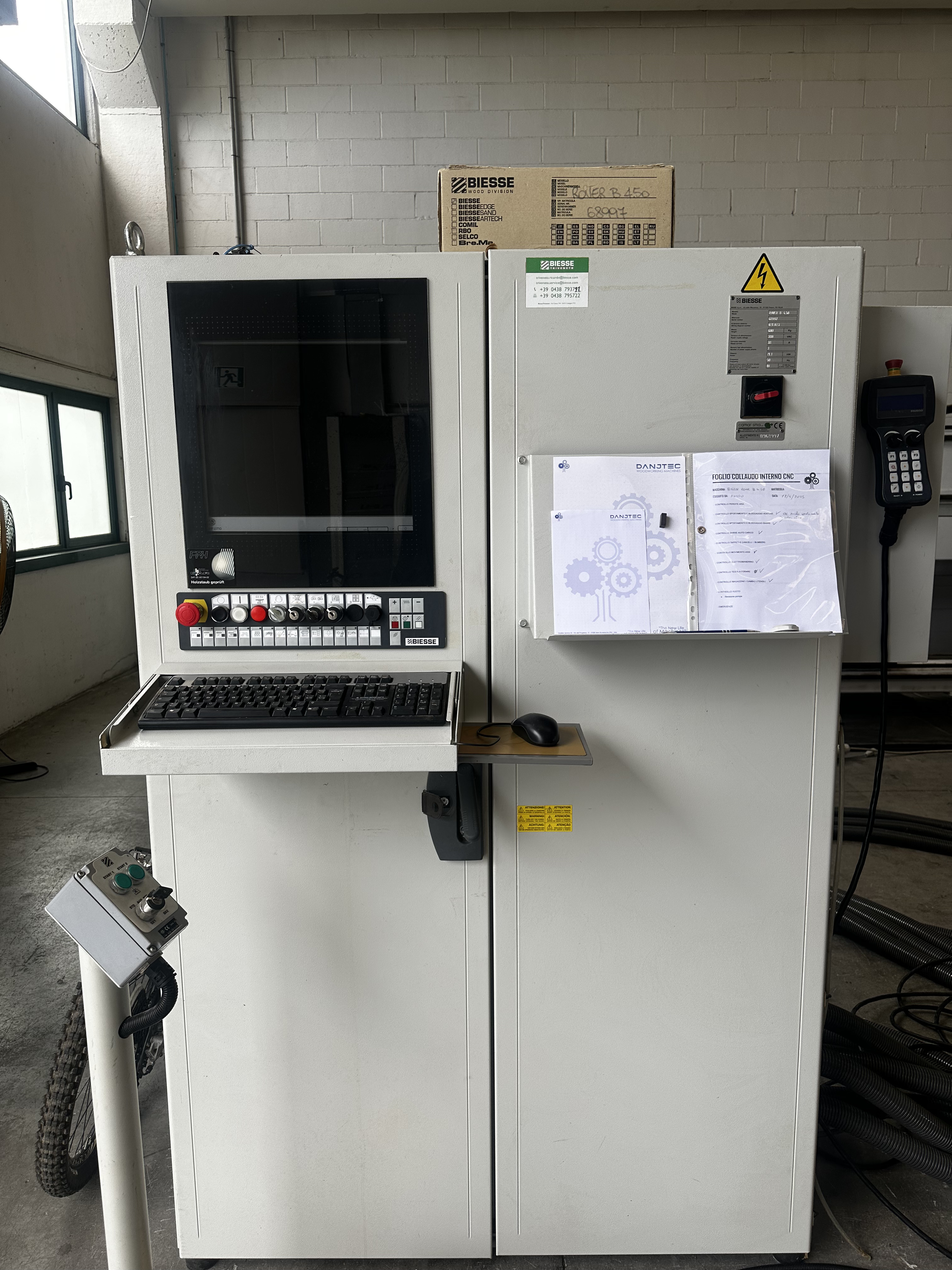

Software BiesseWorks;
CE standards.

VIDEO

MARCA

Biesse

MODELLO

Rover B 4.50

ANNO

2008

CNC machining centres for wood

Download Images

At Danjtec we have a great passion for wood technology.

Danjtec focuses on buying and selling CNC Machining Centers and CNC Wood Routers from top brands such as Biesse, SCM, Morbidelli, Homag, IMA, Masterwood, Holz-her, Weinig, Casadei-Busellato. Used, Refurbished and Guaranteed.

What are CNC routers and machining centers?
A CNC machining center is a woodworking machine used for multiple processes such as drilling and milling. Generally, CNC machining centers offer flexibility and a high level of automation, with automatic tool changing or automatic loading and subsequent removal of parts.

Routers and CNC machining centers are used to drill and mill individual components of a panel cabinet or semi-finished wood products. However, they can also be configured for woddworking, for the production of Doors, Doors, Windows and Stairs.

CNC milling machines for woodworking can have multiple heads with 3-, 4-, or 5-axis electrospindles and tool change magazines. One or more drilling units and a grooving unit with blade tool are often added. Edgebanding machining centers are another type of machining center that have gluing and edge trimming units for automatic shaping and edging of shaped components.

The main distinction in machining centers is between machines with pods and rails system that use vacuum to clamp the workpiece using suction cups and machines with a nesting table through which passes vacuum generated by pumps supplied with the machine. In the classic operation of nesting and bar machining centers, the table remains static holding the workpiece while the machine head (consisting of electrospindle and boring unit) performs the machining. Everything is typically controlled by a PC equipped with a specific software suitable for programming the machine .

Routers and CNC Machining Centers are used in all areas of woodworking and the furniture industry, such as office furniture, kitchens, bedrooms, bathrooms, doors and joinery.

The second-hand machining centers Danjtec, are able to improve, facilitate and speed up your work, all accompanied by availability and a pleasant personal relationship that will be created.
