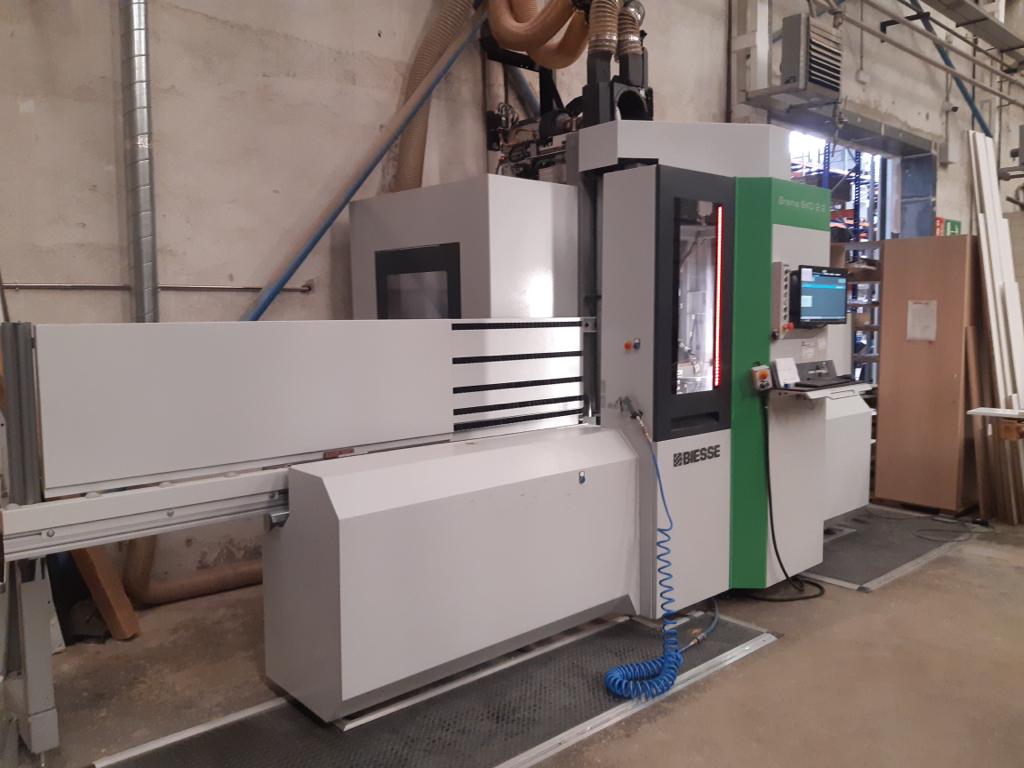

CNC VERTICAL WORKING CENTER BIESSE EKO 2.2

DESCRIZIONE

- Panel length: 200 - 3200 mm
- Panel width: 35 - 1250 mm
- Panel thickness: 8 - 60 mm
- Worktop with counter-pressure system
- Pliers with thickness measurement system
- laser-based reading system for detecting the parameters/reference points and the plate end
- Compensation of length tolerances through plate dimensions in X
- Tool changer with 8 positions

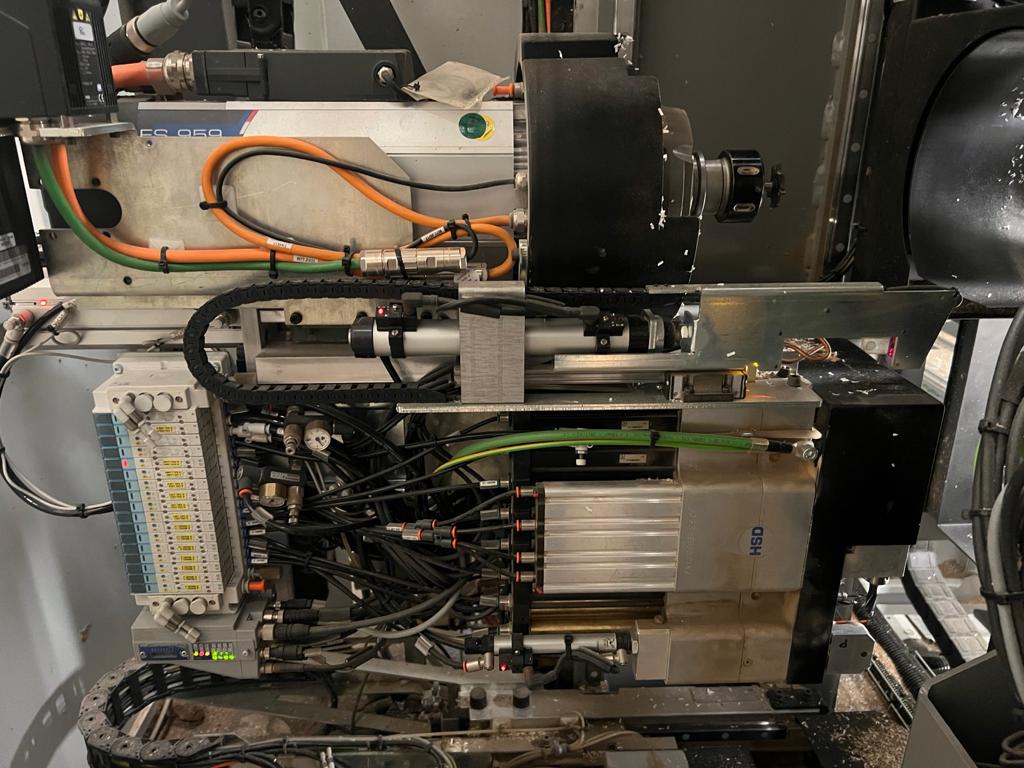

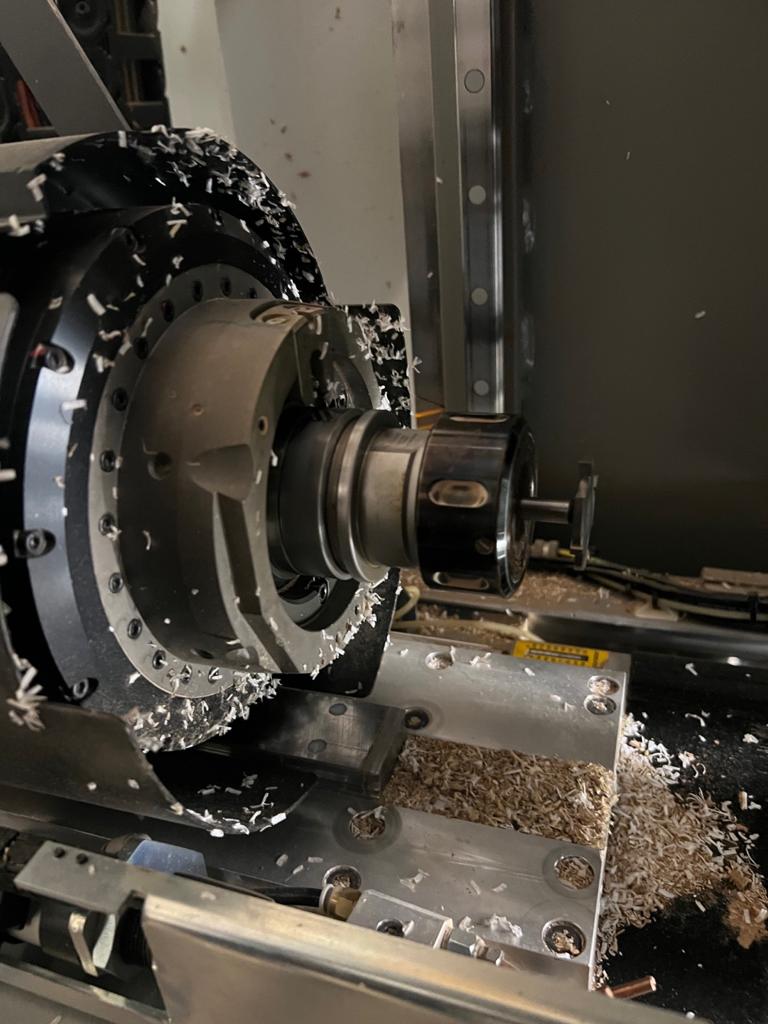

- HSK F63 electrospindle 6.5 kW with 8-position tool change

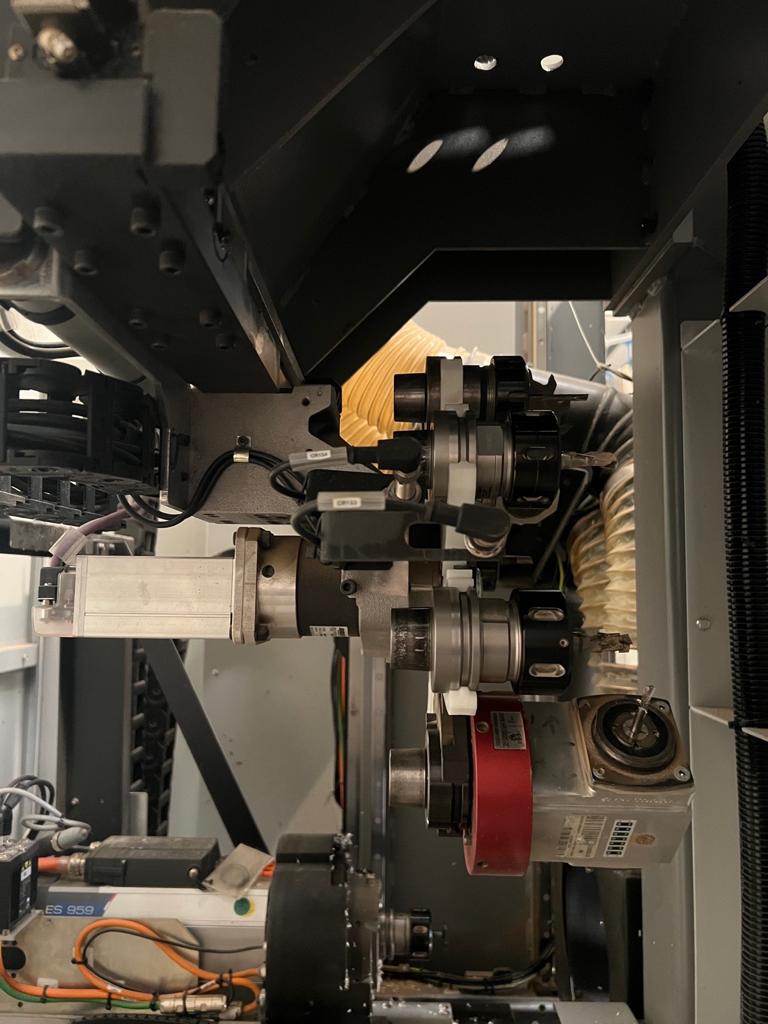

- C Axis
- Double drilling units each one complete as follow
- 12 vertical spindle
- 3 + 3 horizontal spindle in X
- 1+ 1 Horizontal spindle in Y
- Software: bSolid
- CE Mark

MARCA
BIESSE
MODELLO
EKO 2.2
ANNO
2018
